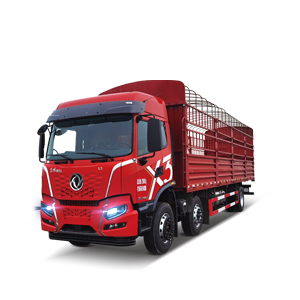

5400~6200箱長糧食、食料、樓板建材運輸車,細分市場領導者;
搭載東風康明斯發動機,法士特變速箱,東風德納橋,黃金動力鏈高效無憂
整車車型 (底盤型號) | DFV1253GP6D1 載貨 (DFV1253GP6DJ1) | DFV1253GP6D2 載貨 (DFV1253GP6DJ2) | DFV5253CCYGP6D1 倉柵 (DFV1253GP6DJ1) | DFV5253CCYGP6D2 倉柵 (DFV1253GP6DJ2) | DFV5253XXYGP6D1 廂式 (DFV1253GP6DJ1) | DFV5253XXYGP6D2 廂式 (DFV1253GP6DJ2) |
外形尺寸 (長*寬*高) (mm) | 7650,7800,8000,8200, 8400,8600,8800,9000, 9200,9400,9550,9750, 10050,10200,10400,10850, 11000,11200,12000x2500, 2550x2800,2980,3050, 3200,3300,3510,3580,3720 | 7650,7800,8000,8150, 9550*2500,2550x2800, 8550,9000,9150,9300, 2880,2980,3020, 3300,3510,3560 | 7650,7800,8000,8200,8400, 8600,8800,9000,9200,9400. 9550,9750,10050,10200, 10400,10850,11000,11200, 12000*2500,2550x3900, 3990,2800,3200,3300, 3560,3810 | 7800,8150,8550,9150, 2550x2750,2800, 9550,9300x2500. 3060,3200,3750,3810, 3900,3950,3990, 3500,3600 | 7650,7800,8000,8200,8400, 8600,8800,9000,9200,9400, 9550,9750,10050,10200, 10400,10850,11000,11200, 12000x2500,2550x3560, 3810,3900,3990 | 7650,7800,8000,8150, 8550,9000,9150,9300, 9550x2500,2550*3560, 3680,3800,3900, 3950,3990 |
箱體尺寸 (mm) (長*寬*高) | 5400,5800,6200,6800, 7200,7700,7800,8600,9400, 9500,9600,9750,9800x2400 2450x600,800 | 5400,5800, 6200,6800, 7200x2400, 2450x600,800 | 5400,5800,6200,6800, 7200,7700,7800,8600, 9400,9500,9600,9750. 9800x2400,2450*600,800 | 5400,5800, 6200,6800 7200x2400, 2450*600,800 | 5400,5800,6200,6800,7200, 7700,7800,8600,9400,9500, 9600,9750,9800x2400, 2450x1900,2100,2200, 2400,2500,2570,2680,2750.2800 | 5400,5800,6200, 6800,7200x2400, 2450x2400,2500,2570, 2680,2200,2300,2350 |
額定質量 (kg) | 17205,17270, 16455,16520 | 18255,18320, 17775,17840 | 16815,16880, 16025,16090 | 17815,17880, 17125,17190 | 16605,16670, 15795,15860 | 17615,17680, 17155,17220 |
整備質量 (kg) | 7600,8350 | 6550,7030 | 7990,8780 | 6990,7680 | 8200,9010 | 7190,7650 |
軸距 | 1995+2700,1995+3000, 1995+3600,1995+4100, 1995+4400,1995+4600, 1995+5000,1995+5250, 1995+5450 | 1995+2700, 1995+3600 | 1995+2700,1995+3000, 1995+3600,1995+4100, 1995+4400,1995+4600, 1995+5000,1995+5250, 1995+5450 | 1995+2700, 1995+3600 | 1995+2700,1995+3000, 1995+3600,1995+4100, 1995+4400,1995+4600, 1995+5000,1995+5250, 1995+5450 | 1995+2700, 1995+3600 |
發動機 | B6.2NS6B260 YCS06245-60 YCS06270-60 | D45TCIF1 WP4.6NQ240E62 D45TCIF3 | YCS06245-60 B6_2NS6B260 YCS06270-60 | D45TCIF1 WP4.6NQ240E62 D45TCIF3 | B6.2NS6B260 YCS06245-60 YCS06270-60 | D45TCIF1 WP4.6NQ240E62 D45TCIF3 |
